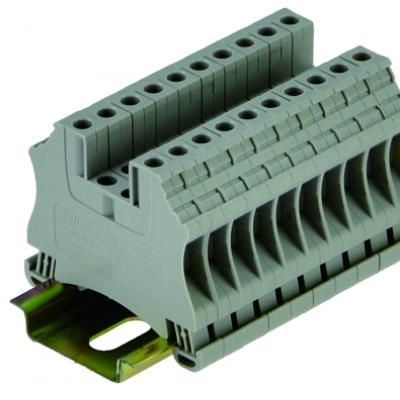

Terminal block RCT4 NT
RCT4 NT
838020
80
Reliance blue
| Basic data | Technical data | |||||
| Dimensions | Color | Reliance blue | ||||
| Length/Width/Height（）mm* | 50/6.5/（44.5/52） | Length | 50mm | |||
| Stripping length(mm)/Clamping screw/Tightening torque▲ | 8/M4/1.5-1.8 | Width | 6.5mm | |||
| Rated data | Height | 44.5mm/52mm | ||||
| Rated voltage/current/cross-section | 1000V/32A/6mm2 | Rated voltage | 1000V | |||
| Rated impulse voltage/Pollution severity | 9.8kV/3 | Rated current | 32A | |||
| Max. current for cross connection | 32A | Rated cross-section | 4mm2 | |||
| Clampable conductors(mm2） | Rated impulse voltage | 9.8kV | ||||
| Solid | 0.2………6 | Carried standard | IEC 60947-7-1 | |||
| Stranded | 0.2………4 | Min. tightening torque | 0.6Nm | |||
| Stranded with ferrule | 0.2………4 | Max. tightening torque | 0.8Nm | |||
| Max. cross-section with insertion bridge(solid/stranded) | 2/6 | Solid | 0.2…6mm2 | |||
| Stranded | 0.2…4mm2 | |||||
| Stranded with ferrule | 0.2…4mm2 | |||||
| Insulation material | PA66 | |||||
Accessories
| order No. | accessory name | model | photo |
|---|---|---|---|
| 838190 | end cover | BNS1 |  |
| 838191 | end bracket | RFC |  |
| 838192 | marking clamp | RTM9 |  |
| 838212 | 4 cross-connection 2 pole | NCQ2-4 |  |
| 838313 | 4 cross-connection 3 pole | NCQ3-4 |  |
| 838314 | 4 cross-connection 4 pole | NCQ4-4 |  |
| 838320 | 4 cross-connection 10 pole | NCQ10-4 |  |
| 828320 | protection cover 4 | RNC4-1 |  |
| 828325 | protection cover 4 | RNC4-5 |  |
| 828321 | protection cover 4C | RNC4-1C |  |
| 828326 | protection cover 4C | RNC4-5C |  |
| 851902 | 4 marking tag blank | TM9.5/6.5 |  |
| 851912 | 4 marking tag horizontal | TM9.5/6.5H |  |
